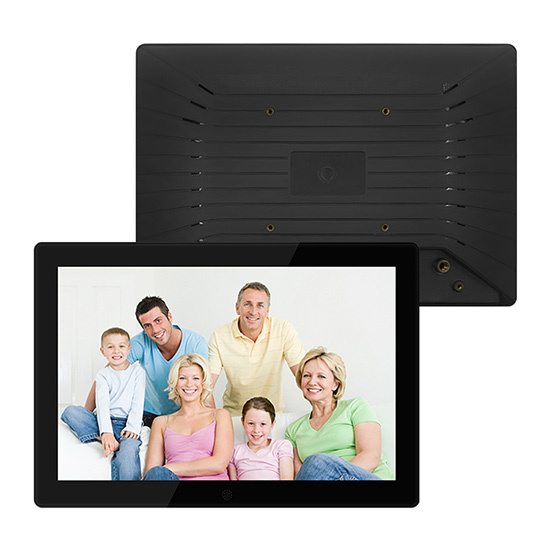

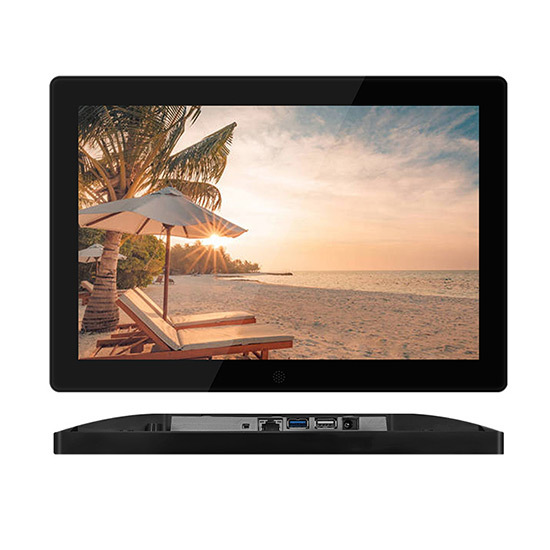

plastic digital signage digital photo frame electronic video frame | |||
| Screen digital art frame | Screen size | 10.1/15.6/21.5/32 inch | |
Resolution | 1280 * 800/1920*1080 | ||
LCD type | Thin film transistor | ||
Touch screen (optional without touch) | Projective capacitive touch | ||
G+G 10-point touch with response speed < 8MS | |||
23*41 channels | |||
| Show colors | 16.7 M | ||
| Data transfer | EDP | ||
| Operating temperature | 0 ~ 50 ℃ | ||
Storage temperature | - 20 ~ 60 ℃ | ||
Response time (MS) | 5MS | ||
Brightness | 300cd/m2 | ||
| LCD panel | COST(original A+ gauge LCD) | ||
| Tempered glass | Mohs Grade Seven tempered glass | ||
power | Working power <20W | ||
Operating voltage | 12V | ||
Working current | 2A | ||
Working environment | Indoor, semi-outdoor | ||
Core parameters | CPU | RK3568(Cortex-A55x4) main frequency up to 2.0GHz | |
GPU | Mali-T764 GPU with AFBC(Frame Buffer compression) support | ||
Storage | DDR 2G, EMMC 16GB | ||
External ports | USB | 2 | |
Network port | 1 | ||
DC | 1 | ||
Access control (optional) | 1 | ||
Camera | Regular camera | Wide motion camera | |
Aperture | The 2.4 mm | The 2.4 mm | |
Focal length | The 1.7 mm | The 4.3 mm | |
Field Angle | 65 ° | 73 ° | |
TV Distortion | < 1% | 0.5% or less | |
Sensitive area size | 1/4inch | 1/2.7 inch | |
Pixels | Monocular 100W | Monocular width dynamic 200W | |
Other parameters | MIC(recording) | Anti-jamming HD microphone | |
Speaker power (W) | 2W*2, 8Ω | ||
Network mode | Support network cable connection, wireless WiFi | ||
Status light | Border design has two status lights, red, green, blue lights, you can customize a certain state | ||
Optional configuration | Glass finish | with AG (anti-glare) with AF (anti-fingerprint) | |
Camera | normal camera | ||
4G network | Yes | ||
POE-powered | with | ||
LOGO | Yes (can be customized on request) | ||
Install | Installation method | Wall mount /desktop | |
